priority queue in data structures and algorithms

Priority queue in Data structure

Posted on 28 May 202023 April 2023 By YASH PAL No Comments on Priority queue in Data structure

In Data Structure a priority queue is a queue in that each element has some priority and all elements are processed based on their priorities. and the element with high priority is processed before the element with low priority.

if the two elements have the same priority then we follow the FIFO rule means the element that comes first will place first and deleted first. and the element that has the highest priority is always at the front of the queue. and has been inserted first and also deleted first.

Priority queue | Data structures and algorithms

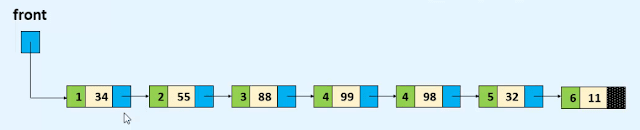

Here in the above example, we implement a priority queue using a linked list. in each node, we have three parts. in the first part, we store the priority of the element and in the second part we store the value of the element in the third part, we store the linked part of the next element.

if we want to insert a new element that has priority 3 then we need to insert the element after node three.

Python program to Implement Priority Queue.

class EmptyQueueError(Exception):
    pass

class Node:

    def __init__(self, value, pr):
        self.info = value
        self.priority = pr
        self.link = None

class PriorityQueue:

    def __init__(self):
        self.front = None
    def enqueue(self, data, data_priority):

        temp = Node(data, data_priority)

        if self.is_empty() or data_priority < self.front.priority:
            temp.link = self.front
            self.front = temp
        else:
            p = self.front
            while p.link != None and p.link.priority <= data_priority:
                p = p.link
            temp.link = p.link
            p.link = temp

    def dequeue(self):
        if self.is_empty():
            raise EmptyQueueError("Queue is empty")
        x = self.front.info
        self.front = self.front.link
        return x

    def is_empty(self):
        return self.front == None
    def display(self):
        if self.is_empty():
            print("Queue is empty")
            return
        print("Queue is : ")
        p = self.front
        while p is not None:
            print(p.info, " ", p.priority)
            p = p.link
        print()

    def size(self):
        n = 0        p = self.front
        while p is not None:
            n += 1            p = p.link
        return n


############################
if __name__ == '__main__':
    qu = PriorityQueue()

    while True:
        print("1. Enqueue")
        print("2. Dequeue")
        print("3. Display all queue elements")
        print("4. Display size of the queue")
        print("5. Quit")

        choice = int(input("Enter your choice : "))

        if choice == 1:
            x = int(input("Enter the element : "))
            pr = int(input("Enter its priority : "))
            qu.enqueue(x, pr)
        elif choice == 2:
            x = qu.dequeue()
            print("Element is : ", x)
        elif choice == 3:
            qu.display()
        elif choice == 4:
            print("Size of queue ", qu.size())
        elif choice == 5:
            break        else:
            print("Wrong choice ")
        print()
Computer Science Tutorials, Data Structures Tutorials Tags:computer science, Data Structure
