insertion in circular linked list in dsa

Insertion in Circular linked list

Posted on 23 May 202023 April 2023 By YASH PAL No Comments on Insertion in Circular linked list

To perform the insertion operation in the Circular linked list we need a reference to the last node of the list. because if we use the reference of the first node to perform operations like insertion and deletion then we need more time to complete these operations.

so we use the reference of the last node in a circular linked list to perform all the insertion operations in constant time.

In this tutorial, we are going to learn how to

  1. Insert a node at the beginning of the list.
  2. Insert a node in an empty list.
  3. Insert a node at the end of the list.

Insert a node at the beginning of the Circular linked list.

like we have a circular linked list of four nodes.

insertion in circular linked list data structures

first, we allocate a new node called temp.

insertion in circular linked list data structures

then we store the first node’s reference into the temp node’s link part.

insertion in circular linked list data structures

then we store the temp node’s reference into the last node’s link part.

insertion in circular linked list data structures

so after performing these steps now a new node is inserted at the first position of the link list.

Insert a node in an empty circular linked list

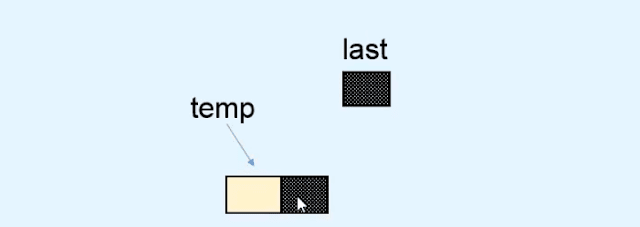

as we know an empty liked list doesn’t have any node in it. so the last variable’s value is None or Null. first, we allocate a new node called temp.

insertion in circular linked list data structures

then we store the temp node’s reference into the last variable. because it’s the only node in the list.

insertion in circular linked list data structures

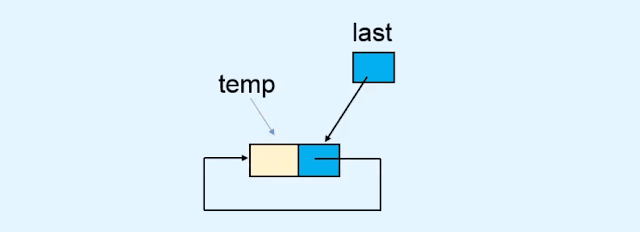

and also it is the first and last node of the list. so we store the temp node is a reference into the linked part of the temp node. means temp node point himself.

insertion in circular linked list data structures

after performing these steps now a new node is inserted in an empty list.

Insert a node at the end of the Circular linked list

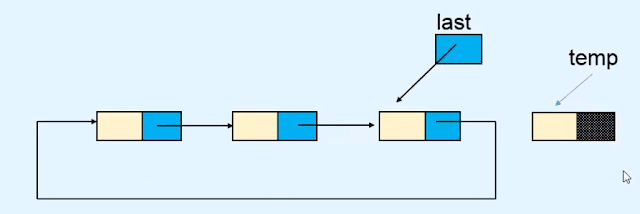

first, we allocate a new node called temp.

insertion in circular linked list data structures

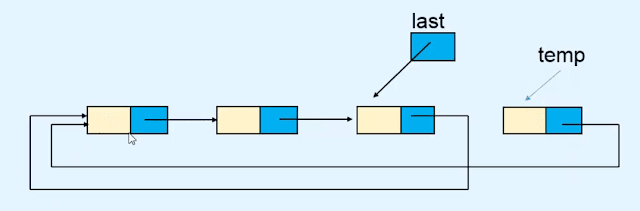

then we store the reference of the first node into the linked part of the temp node.

insertion in circular linked list data structures

after that, we store the temp node’s reference into the linked part of the last node.

insertion in circular linked list data structures

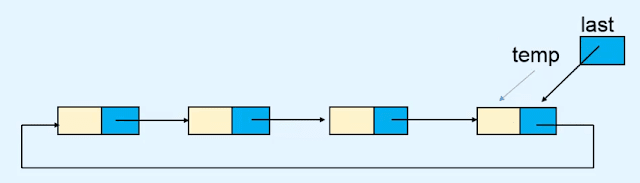

so now the temp node becomes the last node of the linked list. so we update the value of the last variable. because the last variable always stores the reference of the last node in a circular linked list.

insertion in circular linked list data structures

so after performing these steps now the new node is inserted at the end position of the linked list.

Computer Science Tutorials, Data Structures Tutorials Tags:computer science, Data Structure
