Deletion in Binary Search Tree – While performing the deletion operation in a binary search tree, we come to three cases. The node that we want to delete.

Deletion in a Binary Search Tree

  1. Node has no child
  2. Node has exactly one child node
  3. Node has exactly two child nodes

Let’s see them one by one with the help of an example.

Node has no child

For deleting a node that doesn’t have any child nodes, we replace the linked part of the node’s parent node that we want to delete. If the node is the left child node, then the left child of the parent becomes None, and if the node is the right child, then the right child of the parent becomes None. Let’s say we have a binary search tree as given below. And we want to delete node 34.

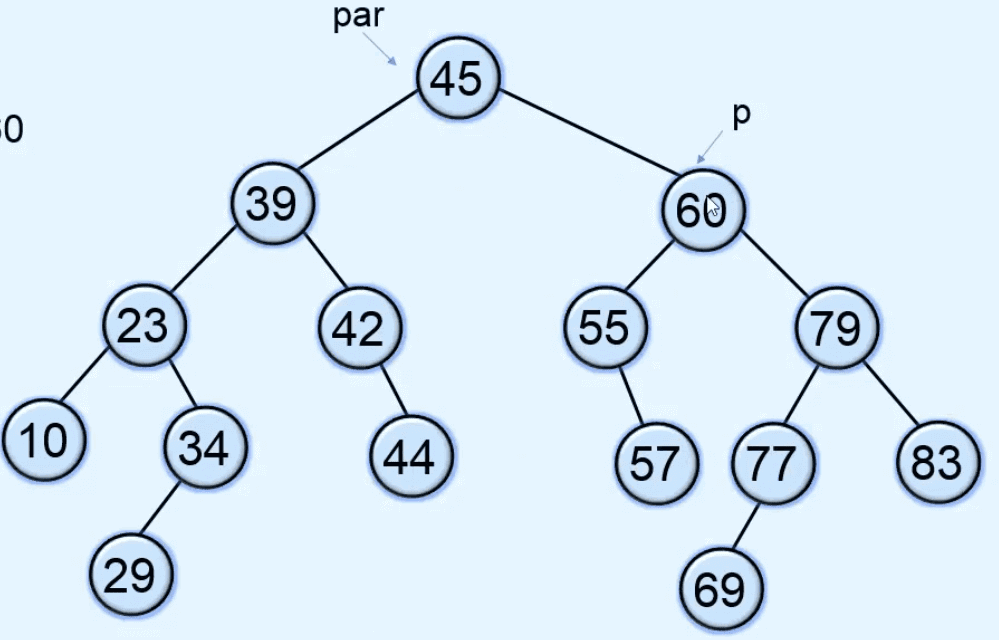

Deletion in a Binary Search Tree
Figure 1: Deletion in a Binary Search Tree

To delete this node, first, we need to find the reference of the node that we want to delete and the reference of the parent node, as you see in Figure 1. Because node 34 is the right child of node 23, we set the right child of node 23 to None.

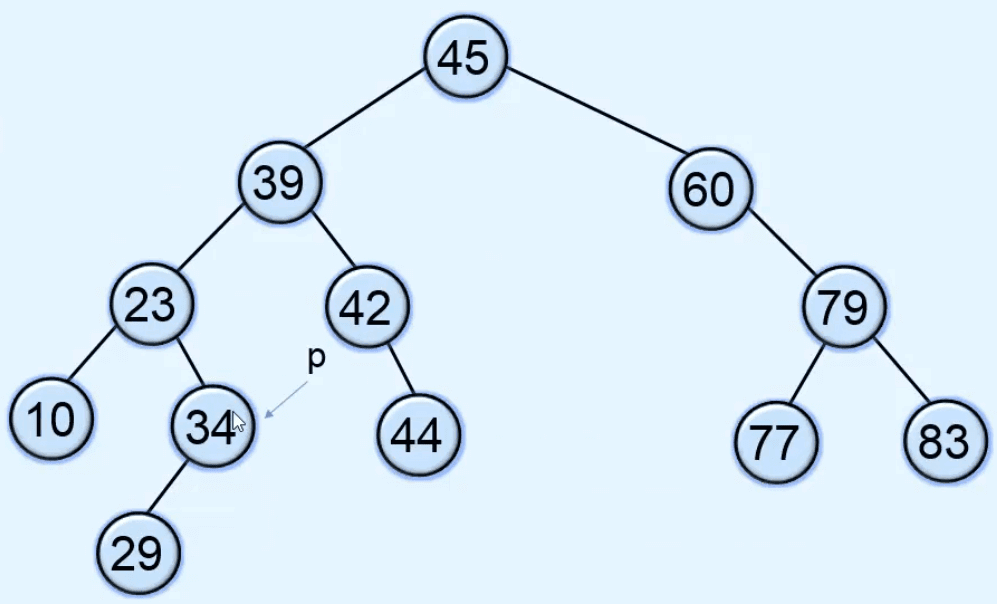

Deletion in a Binary Search Tree
Figure 2: Deletion in a Binary Search Tree

So now the 34 is deleted from the tree.

Node has only one child

After deleting the node that has only one child node, the child will come to the place of the deleted node. Let’s say we have a node P that we want to delete, and PR is the parent of the node, and CH is the child of the node that has to be deleted. If P is the left child of the PR, then CH becomes the left child of PR, and if P is the right child of PR, then CH becomes the right child of PR

Let’s say we have a binary search tree, as you see in Figure 3, and we want to delete node 34, which has one child, 29.

Deletion of only node in binary search tree
Figure 3: Deletion of a node with one child

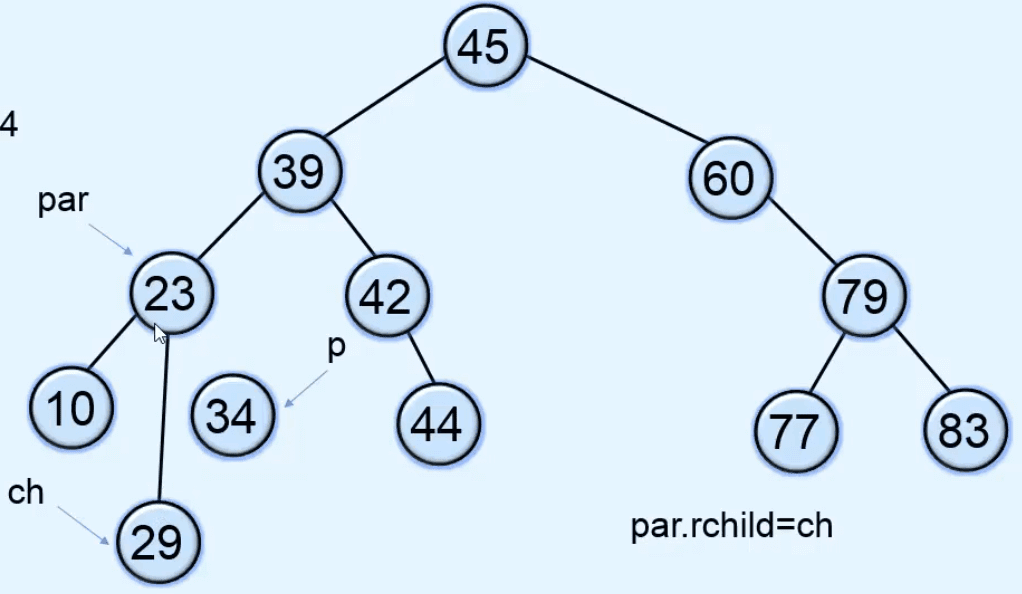

To delete this node, we need to find the reference of the node that we want to delete and reference its parent and child nodes.

deletion in binary search tree

Because the node P that we want to delete is the right child of node 23, we store the reference of the child node of node P into the parent node 23 as the right child.

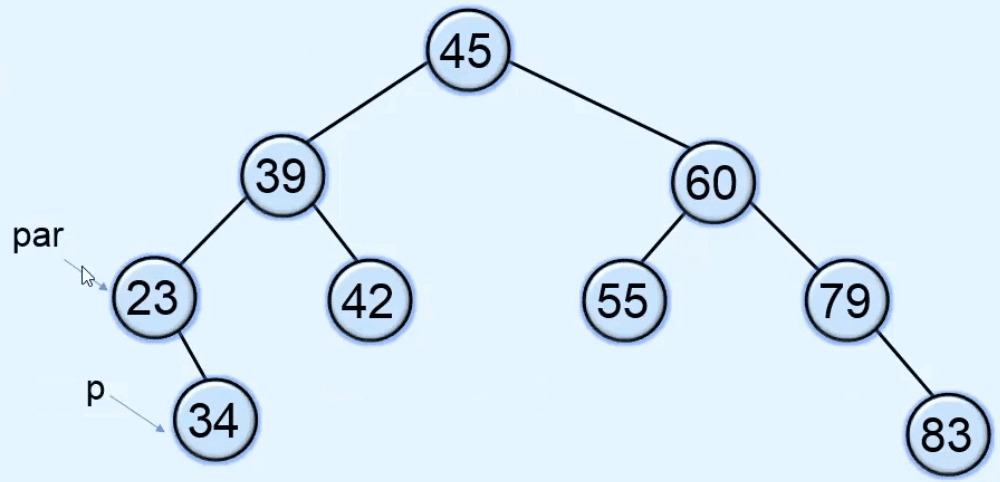

deletion in binary search tree

So now the 34 is deleted, and the new node 29 is replaced at 34.

deletion in binary search tree

Node has two child nodes

To delete a node that has two child nodes, first we need to find the Inorder successor of the node that we want to delete. and then copy the data of the Inorder successor to the node, and then delete the Inorder successor from the tree.

How to find an Inorder successor

Let’s say we want to delete the node that has value 84, and to find the Inorder successor of this node, we need to traverse the right subtree of node 84 and pick the leftmost node in the right subtree.

deletion in binary search tree

So the leftmost node in the right subtree of node 84 is 86, so this is the Inorder successor of node 84. Let’s say we have a binary search tree and we want to delete node 60, which has two child nodes, as you see in Figure 4.

deletion in binary search tree
Figure 4: Delete node with two child nodes

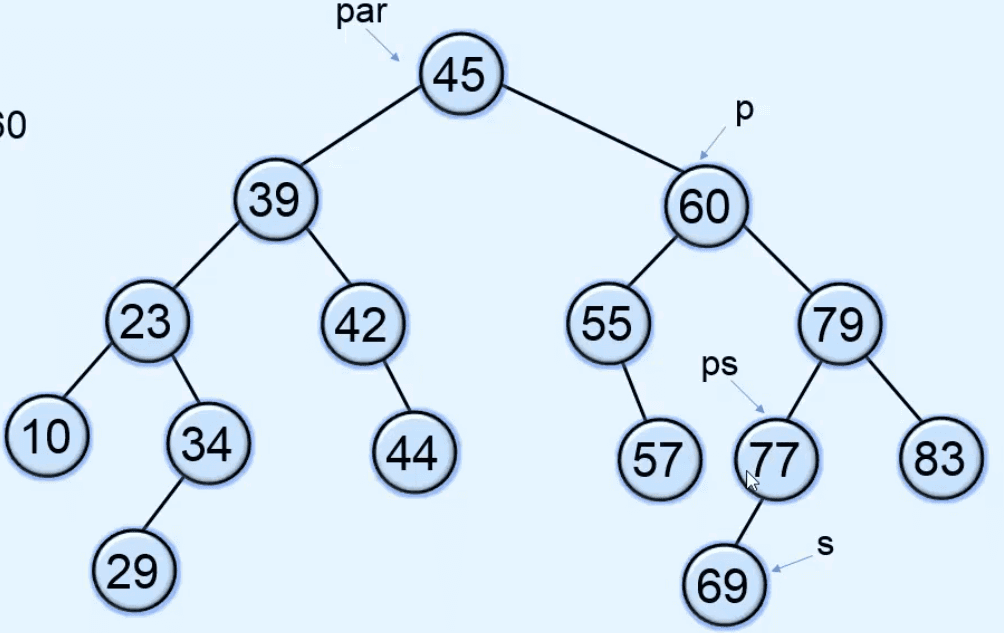

So first we need to find the reference of the node, its parent node, and the inorder successor of the node and the parent of the inorder successor node, as you see in Figure 5.

deletion in binary search tree
Figure 5: Inorder Successor Node

And then we replace the value of the node with the inorder successor of the node, as you see in Figure 6. We replace the value 60 with its inorder successor, which is 69.

deletion in binary search tree
Figure 6: Inorder successor of node

And then we delete the inorder successor 69, so now node 60 is deleted.

deletion in binary search tree

Program to perform the deletion operation in the binary search tree

class TreeEmptyError(Exception):
    pass

class Node:
    def __init__(self, value):
        self.info = value
        self.lchild = None
        self.rchild = None

class BinarySearchTree:

    def __init__(self):
        self.root = None
    def is_empty(self):
        return self.root is None
    def _insert(self, p, x):
        if p is None:
            p = Node(x)
        elif x < p.info:
            p.lchild = self._insert(p.lchild, x)
        elif x > p.info:
            p.rchild = self._insert(p.rchild, x)
        else:
            print(x, " already present in the tree")
        return p

    def insert1(self, x):
        p = self.root
        par = None        while p is not None:
            par = p
            if x < p.info:
                p = p.lchild
            elif x > p.info:
                p = p.rchild
            else:
                print(x + " already present in the tree")
                return
        temp = Node(x)

        if par is None:
            self.root = temp
        elif x < par.info:
            par.lchild = temp
        else:
            par.rchild = temp

    def search(self, x):
        return self._search(self.root, x) is not None
    def _search(self, p, x):
        if p is None:
            return None        if x < p.info:
            return self._search(p.lchild, x)
        if x > p.info:
            return self._search(p.rchild, x)
        return p

    def search1(self, x):
        p = self.root
        while p is not None:
            if x < p.info:
                p = p.lchild
            elif x > p.info:
                p = p.rchild
            else:
                return True        return False
    def delete(self, x):
        self.root = self._delete(self.root, x)

    def _delete(self, p, x):
        if p is None:
            print(x, " not found")
            return p

        if x < p.info:
            p.lchild = self._delete(p.lchild, x)
        elif x > p.info:
            p.rchild = self._delete(p.rchild, x)
        else:
            if p.lchild is not None and p.rchild is not None:
                s = p.rchild
                while s.lchild is not None:
                    s = s.lchild
                p.info = s.info
                p.rchild = self._delete(p.rchild, s.info)
            else:
                if p.lchild is not None:
                    ch = p.lchild
                else:
                    ch = p.rchild
                p = ch
        return p

    def delete1(self, x):
        p = self.root
        par = None
        while p is not None:
            if x == p.info:
                break            par = p
            if x < p.info:
                p = p.lchild
            else:
                p = p.rchild

            if p is None:
                print(x, " not found")
                return
            if p.lchild is not None and p.rchild is not None:
                ps = p
                s = p.rchild

                while s.lchild is not None:
                    ps = s
                    s = s.lchild
                p.info = s.info
                p = s
                par = ps

            if p.lchild is not None:
                ch = p.lchild
            else:
                ch = p.rchild

            if par is None:
                self.root = ch
            elif p == par.lchild:
                par.lchild = ch
            else:
                par.rchild = ch

    def min1(self):
        if self.is_empty():
            raise TreeEmptyError("Tree is empty")
        p = self.root
        while p.lchild is not None:
            p = p.lchild
        return p.info

    def max1(self):
        if self.is_empty():
            raise TreeEmptyError("Tee is empty")
        p = self.root
        while p.rchild is not None:
            p = p.rchild
        return p.info

    def min2(self):
        if self.is_empty():
            raise TreeEmptyError("Tree is empty")
        return self._min(self.root).info

    def _min(self, p):
        if p.lchild is None:
            return p
        return self._min(p.lchild)

    def max2(self):
        if self.is_empty():
            raise TreeEmptyError("Tree is empty")
        return self._max(self.root).info

    def _max(self, p):
        if p.rchild is None:
            return p
        return self._max(p.rchild)

    def display(self):
        self._display(self.root, 0)
        print()

    def _display(self, p, level):
        if p is None:
            return        self._display(p.rchild, level + 1)
        print()

        for i in range(level):
            print("  ", end='')
        print(p.info)
        self._display(p.lchild, level + 1)

    def preorder(self):
        self._preorder(self.root)
        print()

    def _preorder(self, p):
        if p is None:
            return        print(p.info, " ")
        self._preorder(p.lchild)
        self._preorder(p.rchild)

    def inorder(self):
        self._inorder(self.root)
        print()

    def _inorder(self, p):
        if p is None:
            return        self._inorder(p.lchild)
        print(p.info, " ")
        self._inorder(p.rchild)

    def postorder(self):
        self._postorder(self.root)
        print()

    def _postorder(self, p):
        if p is None:
            return        self._postorder(p.lchild)
        self._postorder(p.rchild)
        print(p.info, " ")

    def height(self):
        return self._height(self.root)

    def _height(self, p):
        if p is None:
            return 0
        hL = self._height(p.lchild)
        hR = self._height(p.rchild)

        if hL > hR:
            return 1 + hL
        else:
            return 1 + hR


###################################
bst = BinarySearchTree()

while True:
    print("1.Display Tree")
    print("2.Search(Iterative)")
    print("3.Search(Recursive)")
    print("4.Insert a new node(Iterative)")
    print("5.Insert a noew node(Recursive)")
    print("6.Delete a node(Iterative)")
    print("7.Delete a node(Recursive)")
    print("8.Find Minimum key(Iterative)")
    print("9.Find Minimum key(Recursive)")
    print("10.Find Maximum key(Iterative)")
    print("11.Find Maximum key(Recursive)")
    print("12.Preorder Traversal")
    print("13.Inorder Traversal")
    print("14.Postoder Traversal")
    print("15.Height of tree")
    print("16.Quit")
    choice = int(input("Enter your choice : "))

    if choice == 1:
        bst.display()
    elif choice == 2:
        x = int(input("Enter the key to be searched : "))
        if bst.search1(x):
            print("Key found")
        else:
            print("Key not found")
    elif choice == 3:
        x = int(input("Enter the key to be searched : "))
        if bst.search(x):
            print("Key found")
        else:
            print("Key not found")

    elif choice == 4:
        x = int(input("Etner the key to be inserte : "))
        bst.insert1(x)
    elif choice == 5:
        x = int(input("Enter the key to be inserted : "))
        bst.insert1(x)
    elif choice == 6:
        x = int(input("Enter the element to be deleted : "))
        bst.delete1(x)
    elif choice == 7:
        x = int(input("Enter the element to be deleted : "))
        bst.delete(x)
    elif choice == 8:
        print("Minimum key is ", bst.min1())
    elif choice == 9:
        print("Minimum key is ", bst.min2())
    elif choice == 10:
        print("Maximum key is ", bst.max1())
    elif choice == 11:
        print("Maximum key is ", bst.max2())
    elif choice == 12:
        bst.preorder()
    elif choice == 13:
        bst.inorder()
    elif choice == 14:
        bst.postorder()
    elif choice == 15:
        print("Height of tree is ", bst.height())
    elif choice == 16:
        break    else:
        print("wrong choice")
    print()
